Hitachi 315-042 Spare Part - Miter Gauge Ass'y

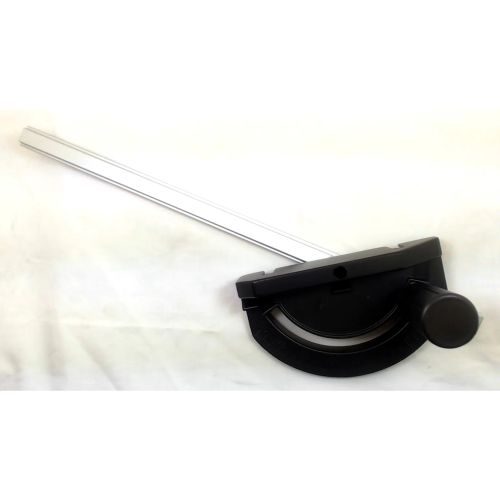

Hitachi 315-042 — Miter‑Gauge Assembly (direct-fit replacement for Hitachi C10RA2)

Short description:

Restore accurate crosscuts and angle stops with the original Hitachi 315-042 mitre‑gauge assembly. This factory-design mitre gauge installs in the table saw slot and provides the indexed 90°/45° positive stops, a clamping handle for secure locking, and the bar needed to guide stock square to the blade — everything you need to get your C10RA2 back to true cutting performance. This product is listed in the Hitachi C10RA2 parts/service manual as the MITER GAUGE ASS’Y (includes clamp handle, washer, mitre gauge bar and machine screw).

Key details (what you get)

- Part number: 315-042 — Miter Gauge Assembly (original Hitachi component).

- Included subcomponents as shown in the parts list: clamp handle (code 314-505), flat washer (code 314-506), mitre gauge bar (code 314-507) and the fixing screw (code 949-234).

- Function: adjustable mitre guide with positive 90° and 45° stops, bar sized to ride in the standard table slot and clamp to lock the workpiece for repeatable, accurate cuts.

- Condition: sold as the complete assembly to replace a worn/damaged gauge and restore accurate setup and safe operation.

Example fitment

- Confirmed fit: Hitachi model C10RA2 (listed in the C10RA2 parts breakdown).

- If your saw uses the factory mitre‑gauge groove and hardware as shown in the C10RA2 parts list, this assembly is the correct Hitachi replacement.
