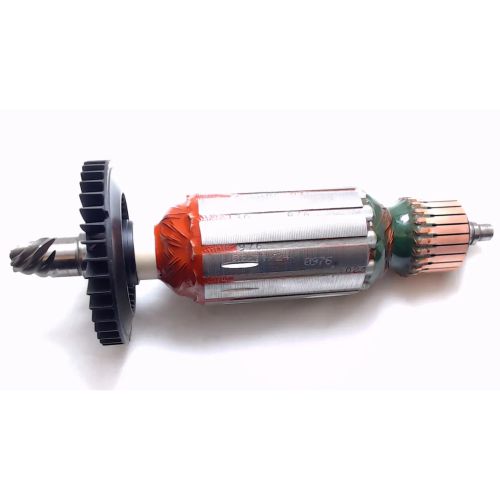

Metabo 310009760 Spare Part - Armature 230 V

Original Metabo armature — part no. 310009760 — 230 V rotor assembly for Metabo rotary hammers and magnetic drills. This is the complete armature/rotor (laminated core, copper windings and commutator with shaft) specified for the motor in Metabo KHE series tools; it replaces a burnt or noisy rotor to restore smooth running and full power.

Key details:

- Part number: 310009760 — listed as "Armature 230 V" on Metabo parts lists.

- Typical fitment: Metabo KHE 3250 (type 00637000) and Metabo KHE 3251 (type 00659000) series as shown on Metabo’s spare-parts diagrams. Verify the tool’s type/serial plate to match your model number before installing.

- Motor-related components shown alongside this armature on the parts diagram include ball bearings sized 6 × 19 × 6 mm and 12 × 28 × 8 mm (these are the bearings used with the rotor in the motor assembly). If those bearings or the carbon brushes are worn, replace them at the same time for best results.

Why choose this part:

- Direct, original Metabo replacement built to the tool maker’s tolerances — designed to restore original motor balance and commutation for reliable operation under load.

What to check before ordering/installation:

- Confirm your tool’s type/model (for example the 00637000 / KHE 3250 or 00659000 / KHE 3251 references on Metabo parts diagrams) and that your machine uses a 230 V motor variant. Replacing an armature usually requires brush and bearing inspection and basic motor disassembly skills.

This original Metabo armature is the correct rotor assembly called out in Metabo’s spare-parts diagrams for the KHE 3250 / KHE 3251 tool families and is intended to put your Metabo motor back into service.
