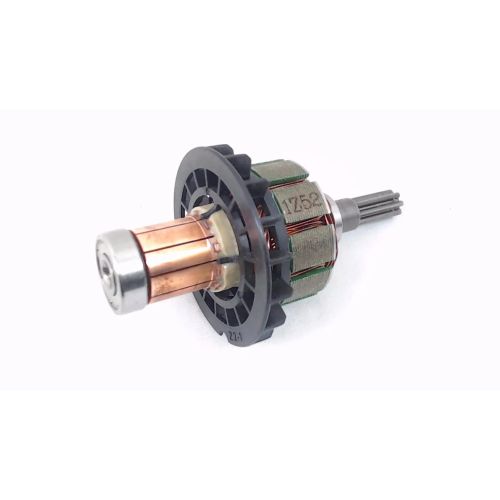

Makita 619553-4 Spare Part - ARMATURE DTD156
Makita part 619553-4 — genuine Makita armature / rotor for the DTD156 impact driver. This is the rotating armature assembly (rotor) that replaces a worn or damaged motor rotor/commutator in the Makita DTD156 and DTD156Z impact drivers, restoring proper motor rotation and brush contact for reliable fastening performance.
What you’re getting
- Original Makita part number: 619553-4.
- Function: rotating armature/rotor with commutator section that mates to the motor brushes and drive shaft; designed to match Makita’s original motor geometry and electrical specifications.
Why it matters
- Installs directly into the DTD156 / DTD156Z motor assembly to recover torque and smooth operation when the old rotor shows excessive commutator wear or electrical faults.
Quick installation notes
- Swap-in replacement for the original rotor—inspect carbon brushes and end bearings while the tool is open, as those commonly wear when an armature fails.
If your tool is a Makita DTD156 or DTD156Z and the motor is showing intermittent power, burning smell, loud bearing noise, or poor performance, this genuine Makita 619553-4 armature is the direct replacement to get it turning like new again.
Jump straight to the Makita spare parts diagrams:
Browse our full range of Makita impact driver parts.
Compatible models this part will fit:
