Makita 515289-2 Spare Part - ARMATURE 240V HR2460/2470
517984-0 supersedes older part numbers: 515289-2

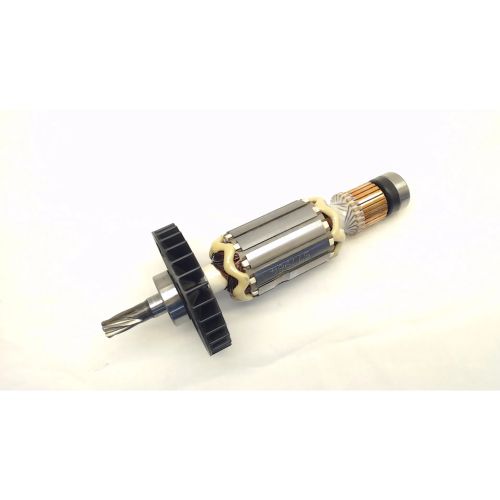

Makita 517984-0 Armature / Rotor assembly — genuine Makita replacement for the motor in select corded rotary hammers. This 240 V armature (also referenced as 515289-2) is the rotating core of the motor: precision-machined commutator, stacked steel laminations, copper windings and a hardened steel shaft, factory-balanced to reduce vibration and restore smooth speed and torque under load. It’s a direct-fit rotor for Makita HR2460 and HR2470 series rotary hammers (including HR2470F and HR2470T), so you can swap it in to get drilling and chiselling performance back to spec.
Engineered to the original Makita specification, this armature is intended to pair with correct brush holders and bearings during service—replacing a burnt or worn armature will markedly reduce sparking, heat and loss of power. This is a useful parts for power tools replacement when the motor shows symptoms like heavy sparking at the commutator, low rpm under load, or a burnt-smell from the motor.
What you’re getting: one genuine Makita armature assembly (P/N 517984-0, cross ref 515289-2) sized and balanced for the HR2460/HR2470
Jump straight to the Makita spare parts diagrams:
Browse our full range of Makita drill parts. Makita hammer drill parts.
Compatible models this part will fit:
