Makita 513893-1 Spare Part - ARMATURE ASSY240V UC3541/4041

511A83-6 supersedes older part numbers: 513893-1

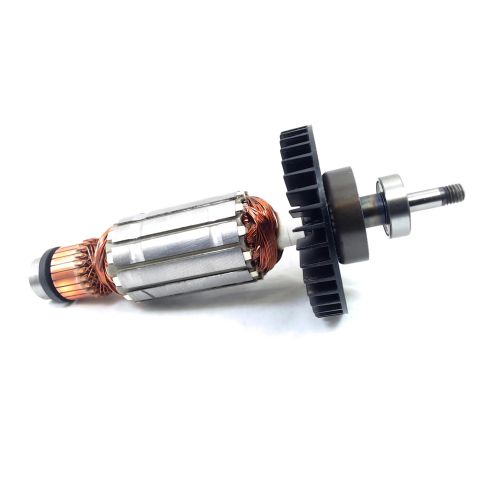

Original Makita armature / rotor assembly — part number 511A83-6. This is the complete rotating motor element (laminated armature, commutator and driven shaft) used to restore motor rotation when the original rotor is burnt, damaged or noisy.

Direct-fit for several Makita electric chainsaw models — commonly listed for UC3041A, UC3541A and UC4041A and shown as compatible with older ES-series models (ES34TLC, ES39TLC, ES43TLC) in parts listings. Use this part when your saw’s armature shows electrical failure, heavy sparking at the commutator, or a seized/rough shaft.

Notes for fitment: these machines use 300 mm, 350 mm and 400 mm guide bars respectively (UC3041A = 300 mm, UC3541A = 350 mm, UC4041A = 400 mm), so check your model number before ordering — the 511A83-6 is the armature assembly specified in the parts diagrams for these Makita chain saws.

If you need to get the saw turning again, this is the original Makita replacement armature that drops into the motor assembly — order the 511A83-6 to match the part number on your exploded parts diagram and replace the rotor/armature as a single unit.
