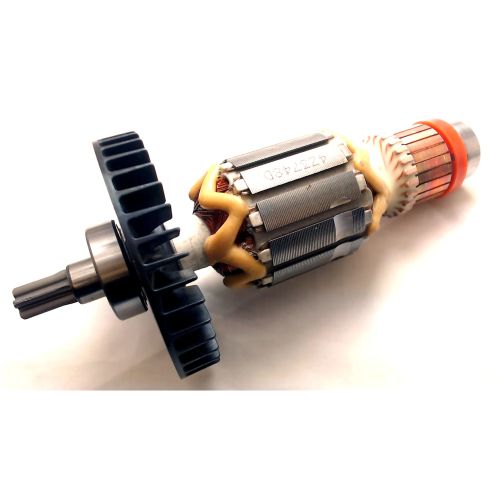

Makita 513748-0 Spare Part - ARMATURE ASSY 240V HR3210/3540

Original Makita armature assembly — part no. 513748-0 — a 240 V rotor/commutator unit engineered to restore motor drive in Makita rotary hammers such as HR3210C and HR3210FCT (SDS‑Plus, 32 mm capacity) and HR3540C and HR3541FC (SDS‑Max, 35 mm capacity).

This is the original Makita armature built around a laminated steel core with tightly wound copper windings, a precision‑machined commutator and a hardened, precision‑balanced rotor shaft — the combination designed to reduce vibration, curb excessive brush arcing and restore torque and speed consistency under load.

Sold as the direct replacement armature for the listed models, it drops into the existing motor housing and mates with the brush/field assembly to cure symptoms such as loss of power, heavy sparking or a burning smell. Keep this genuine Makita part in mind when repairing parts for power tools that need reliable motor performance.

Note: this item is specified for 240 V tool variants — confirm the voltage and model stamped on your machine before fitting.
