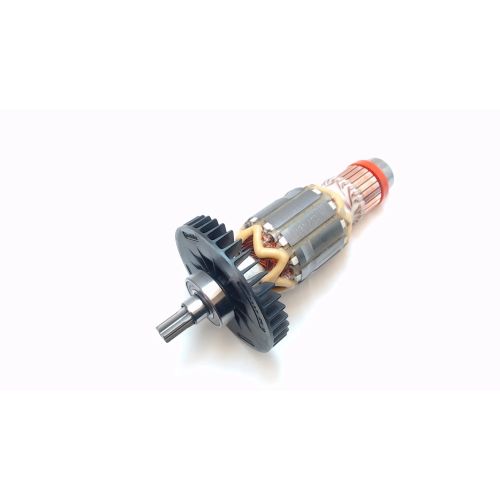

Makita 513746-4 Spare Part - ARMATURE ASSY 110V HR3210/3540

Genuine Makita 513746-4 Armature Assembly (115V) — direct replacement rotor for Makita SDS‑max rotary hammers. This is the motor armature (rotor with commutator and shaft) used in the 115V/110V motor assembly; it restores rotating magnetic drive to the motor and eliminates excessive sparking, loss of power, or smoking that indicate a worn armature.

Key details:

- Part: Makita 513746-4 — Armature Assembly (115V / listed also as 110V on some listings).

- What you get: complete armature (rotor/commutator/shaft) ready to install as a straight swap for the compatible models.

- Installation note: this part should be fitted alongside good carbon brushes and a checked field assembly — replacing brushes at the same time helps prevent early re-failure.

Common compatible Makita models (listed by multiple parts suppliers): HR3210C, HR3210FCT, HR3540C and HR3541FC. Verify your tool’s model number before ordering to ensure compatibility.

Condition: new, original Makita part sold individually. Suitable when the motor shows heavy sparking, burning smell, or loss of torque due to a damaged rotor.

(Part references: Makita 513746-4.)
