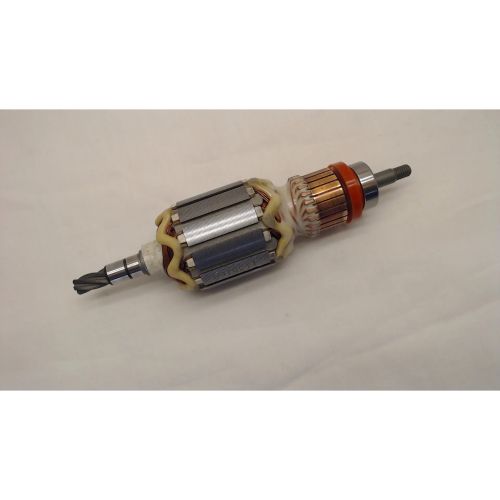

Makita 513516-1 Spare Part - ARMATURE 110V HR3000C
Genuine Makita armature assembly (part number 513516-1) — a ready-to-install rotor/commutator assembly engineered for the Makita HR3000C rotary hammer. This original Makita component arrives as the complete armature/rotor: laminated iron core with factory-wound copper coils, commutator, and shaft — balanced and finished for direct replacement in the motor housing.
Key features
- Original Makita 513516-1 armature/rotor assembly designed to restore smooth motor rotation and commutation.
- Supplied as a full assembly (rotor, commutator, shaft and windings), ready to drop back into the HR3000C motor — no rewinding required.
- Improves electrical contact and reduces arcing when paired with serviceable carbon brushes and brush holders (inspect brushes when replacing the armature).
Compatibility
- Fits Makita HR3000C rotary hammer models (listed as the correct armature for HR3000C). Alternate listings show the same part referenced as 513516-1 / 5135161.
Why this part is useful
- If your HR3000C has lost power, smokes, or produces excessive sparking from the motor, replacing the armature with this original Makita unit restores correct commutation and mechanical balance so the tool runs more smoothly and reliably.
Note: This is the original Makita armature assembly specified for the HR3000C — install it according to the service manual and check brushes and bearings while you have the tool opened.
