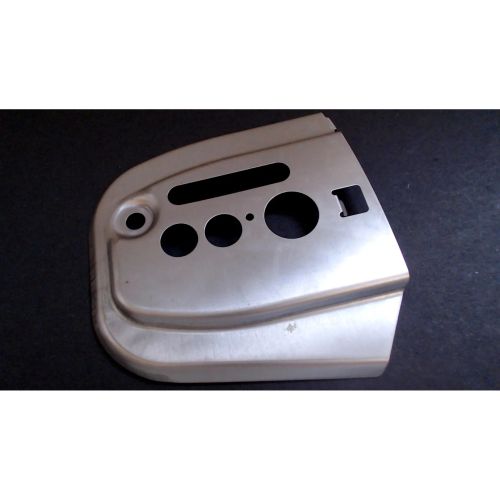

Makita 347534-5 Spare Part - GUIDE PLATE R
Genuine Makita Guide Plate R — part no. 347534-5. This right‑hand guide plate fits under the sprocket cover and restores the correct seating and chip‑clearance for the chain/sprocket assembly on compatible Makita chainsaws.
The plate is the small right-side guide listed in Makita parts diagrams (item 071) and is shown installed beneath the sprocket cover; in the same diagram it is fastened with a tapping screw (Makita diagram shows screw 266007‑8 / 3×10). Replacing a worn or bent guide plate brings back proper chain alignment and prevents premature wear to the cover and sprocket.
Example models this part is used on (examples from Makita parts lists and spare‑parts diagrams): DUC256, DUC256C, DUC256CZ, DUC256PT2, DUC306, UC002G, UC003G, UC004GZ / UC004GM101, UC006G and AS4030. Use these model examples to confirm fit with your saw before installation.
Sold as the individual factory replacement plate, this genuine Makita item is a low‑cost service part that makes a quick repair — it’s listed as a single‑service item in Makita parts diagrams and is ideal when you only need one replacement.
(Part number for reference: 347534-5 — listed as GUIDE PLATE R in Makita parts literature.)
