Makita GUIDE WASHER HR2300/2601/260 - 346177-0

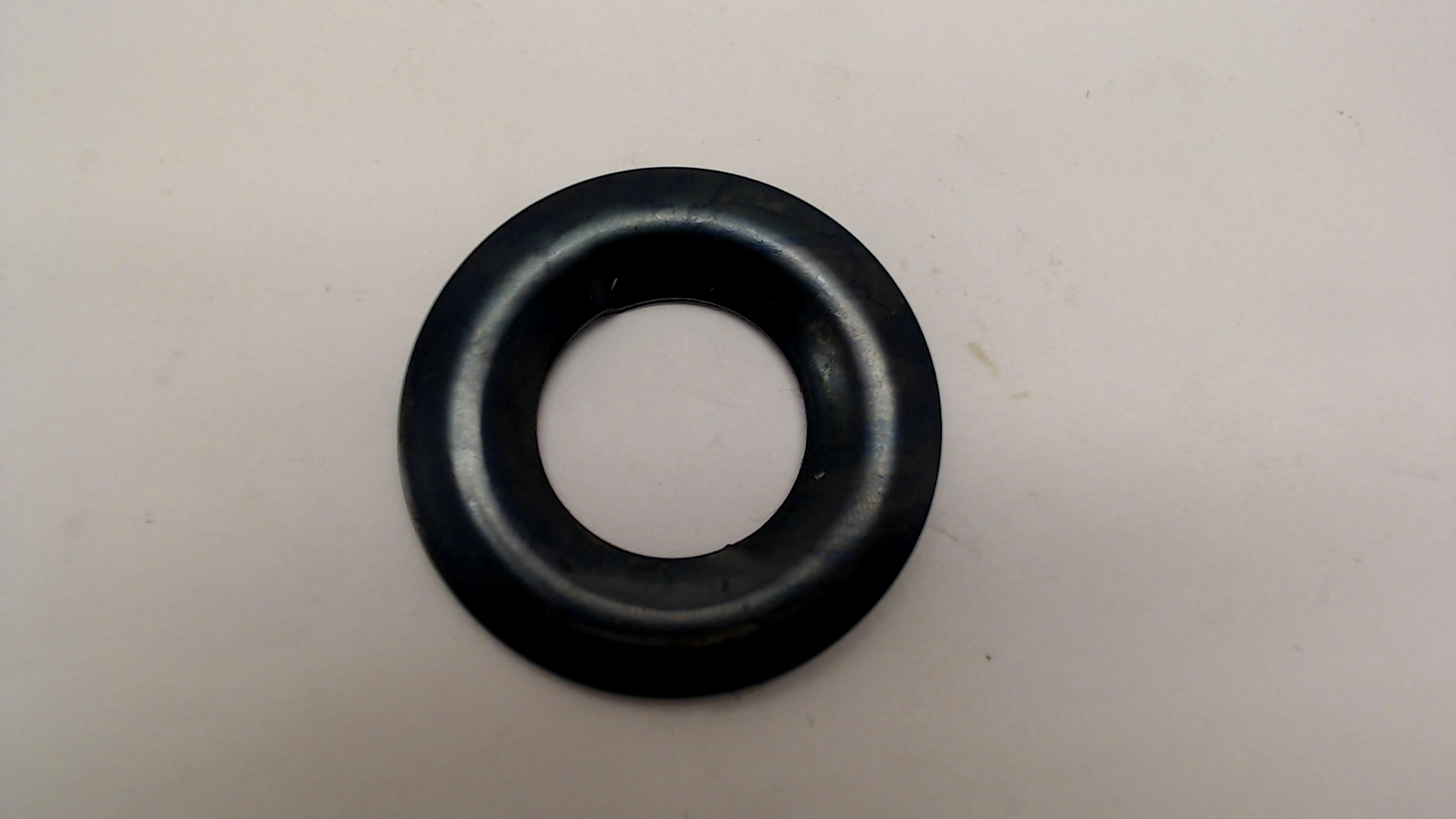

Makita 346177-0 — Guide Washer (genuine Makita replacement)
Restore smooth hammer action with the genuine Makita guide washer (part no. 346177-0). This small metal guide washer fits into the rotary-hammer/hammer assembly where it sits between the conical compression spring and the retaining ring to keep the spring and ring aligned and moving freely. It’s supplied individually and replaces worn, bent or broken washers that can cause binding, excess play, or abnormal wear in the hammer mechanism. A screwdriver and a pair of pliers are often helpful for installation.
Example models this part is used with (representative list):
- GRH07Z / GRH01M1 (40V XGT rotary hammers).
- DHR283 (28 mm combination hammer).
- HR2600 / HR2601 / HR2611F / HR2631F series rotary hammers.
- HR2300 / BHR242 and similar Makita hammer-drill models.
If the washer in your hammer assembly is damaged or missing, replacing it with the original Makita 346177-0 will help restore correct spring alignment and extend the life of the internal components.
Jump straight to the Makita spare parts diagrams:
- Makita BHR242 Parts
- Makita DHR283 Parts
- Makita HR2300 Parts
- Makita HR2600 Parts
- Makita HR2601 Parts
- Makita HR2611F Parts
- Makita HR2631F Parts
Browse our full range of Makita drill parts. Makita hammer drill parts. Makita screwdriver parts.
Compatible models this part will fit:
- Makita BHR242
- Makita HR2300
- Makita HR2600
- Makita HR2601
- Makita HR2610
- Makita HR2611F
- Makita DHR242
- Makita HR2630
- Makita DHR171
- Makita HR2651
- Makita HR2650
- Makita HR1840
- Makita HR1841F
- Makita HR2631
- Makita DHR280
- Makita DHR281
- Makita DHR182
- Makita HR140D
- Makita HR2631F
- Makita M8701
- Makita MT870
- Makita M8700
- Makita HR003GZ
- Makita HR003GD101
- Makita DHR280ZWJ
- Makita HR004
- Makita HR004GD101
- Makita HR004GD102
- Makita HR004GD202
- Makita DHR281ZWJ
Showing first 30 compatible models. Contact us for full compatibility info.
