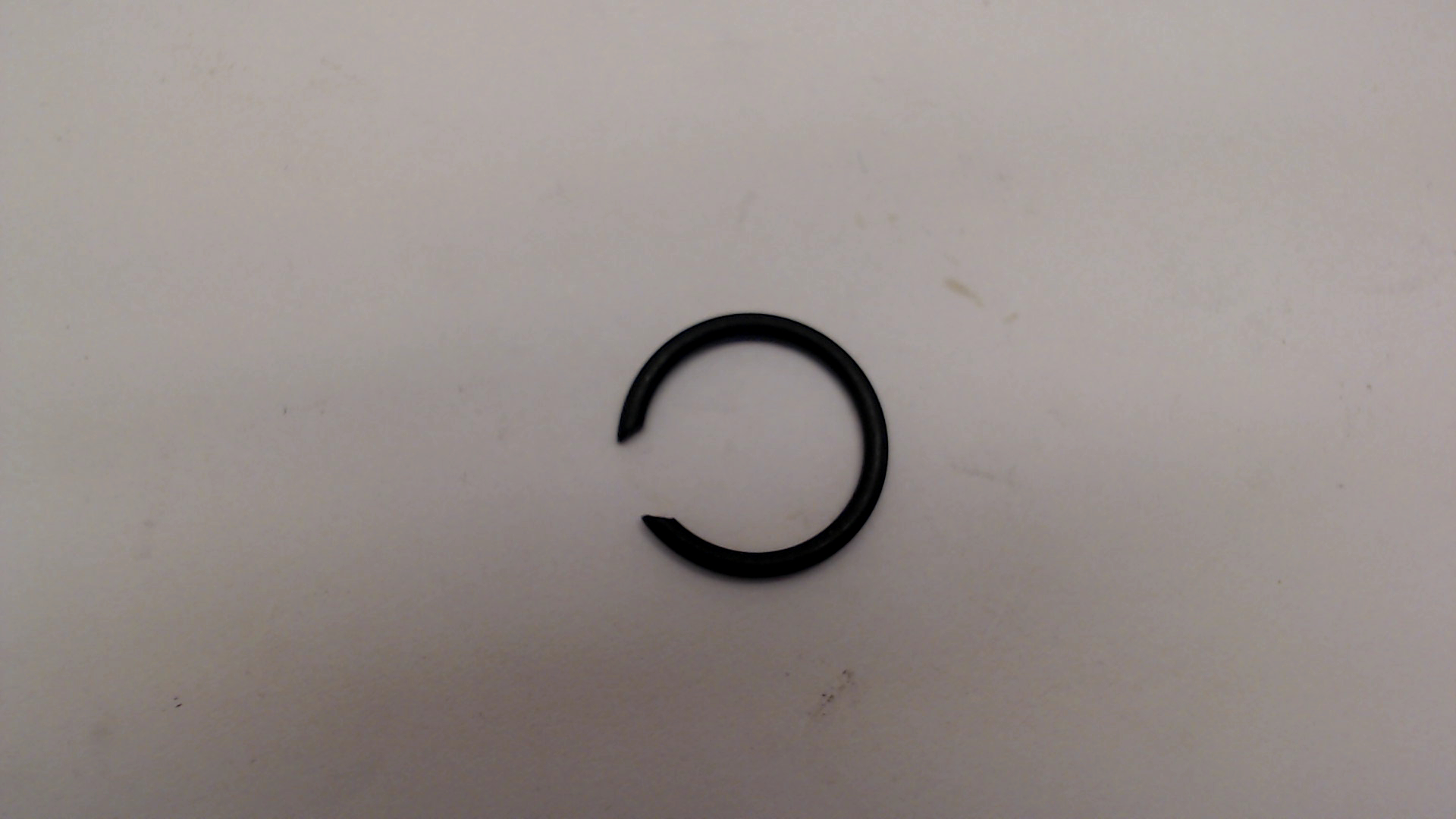

Makita RING SPRING 14 HR2300/2600/01 - 233989-9
Original Makita 233989-9 — RING SPRING 14: a small, hardened ring spring used in the bit-holder/tool‑sleeve assembly to retain the guide washer and adjacent components (listed on Makita parts breakdowns as “RING SPRING 14”).
This genuine Makita spare parts item is sized and referenced by Makita as “14” (fits the chuck/tool‑holder stack next to washer 16 and the guide washer) and is supplied as the single ring spring needed to restore proper bit retention.
Example models that use 233989-9 include a range of Makita rotary hammers such as HR2631F/HR2630, HR2663, HR001G, HR2300/HR2600/HR2601/HR2610 (and other related HR-series models shown in Makita parts breakdowns).
If the retaining spring in your tool’s chuck or sleeve has failed or fallen out, replacing it with this original Makita 233989-9 restores the correct retention and alignment of the guide washer and bit‑holder components.
Jump straight to the Makita spare parts diagrams:
Browse our full range of Makita hammer drill parts.
Compatible models this part will fit:
- Makita BHR242
- Makita HR2300
- Makita HR2600
- Makita HR2601
- Makita HR2610
- Makita HR2611F
- Makita DHR242
- Makita HR2630
- Makita HR2651
- Makita HR2650
- Makita HR2631
- Makita DHR280
- Makita DHR281
- Makita HR2631F
- Makita M8701
- Makita MT870
- Makita M8700
- Makita HR003GZ
- Makita HR003GD101
- Makita DHR280ZWJ
- Makita HR004
- Makita HR004GD101
- Makita HR004GD102
- Makita HR004GD202
- Makita HR3001CJ
- Makita HR3012FCJ
- Makita DHR281ZWJ
- Makita HR002G
- Makita HR004G
- Makita HR001G
Showing first 30 compatible models. Contact us for full compatibility info.
