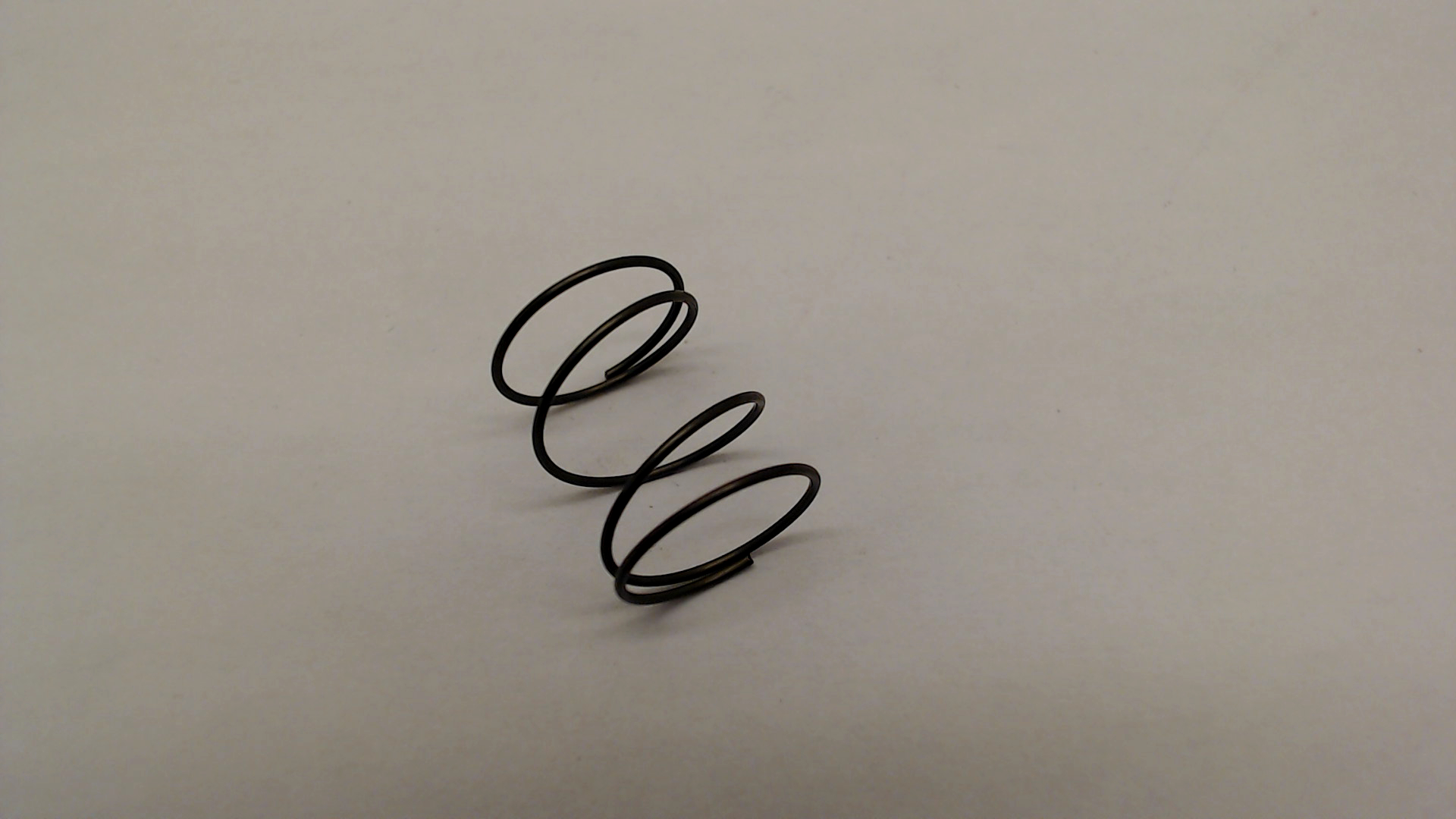

Makita COMPRESSION SPRING 13 TD126 - 233005-7
Original Makita compression spring — part number 233005-7 — designed to restore the axial tension in the bit/hammer assembly on select Makita drills and drivers. It's a small steel coil spring (sold individually) that fits inside the bit sleeve/anvil area to hold the sleeve and steel ball in place and return components to position after impact or bit release.
Key details
- Makita part no.: 233005-7 (listed as "COMPRESSION SPRING 13").
- Function/location: compression spring used in the bit sleeve / anvil / impact section to provide contact pressure and return force.
- Appearance/material: small metal coil spring, fitted to the sleeve/washer/steel-ball stack; sold one spring per part number.
Example Makita models that use this part (examples from Makita parts breakdowns)
- TD022DSE.
- DF010D / DF010DSE.
- TD021D / TD021DSE.
- DF012DSE.
- DTL061 (angle impact driver).
If your tool has a loose or missing spring in the bit/anvil assembly (sleeve and small steel ball nearby), replacing it with the original Makita 233005-7 will restore proper sleeve tension and bit retention.
Jump straight to the Makita spare parts diagrams:
Browse our full range of Makita drill parts. Makita impact driver parts. Makita hammer drill parts.
Compatible models this part will fit:
- Makita 6705D
- Makita 6793D
- Makita 6794D
- Makita 6795D
- Makita 6796D
- Makita 6796FD
- Makita 6797D
- Makita 6797FD
- Makita 6798D
- Makita 6798FD
- Makita 6903VD
- Makita 6908D
- Makita 6913D
- Makita 6916D
- Makita 6932FD
- Makita 6935FD
- Makita 6936FD
- Makita 6951
- Makita 6960D
- Makita 6980FD
- Makita 6990D
- Makita BFT020F
- Makita BFT021F
- Makita BFT040F
- Makita BFT041R
- Makita BFT080F
- Makita BFT081F
- Makita BFT082R
- Makita BFT122F
- Makita BFT123F
Showing first 30 compatible models. Contact us for full compatibility info.
