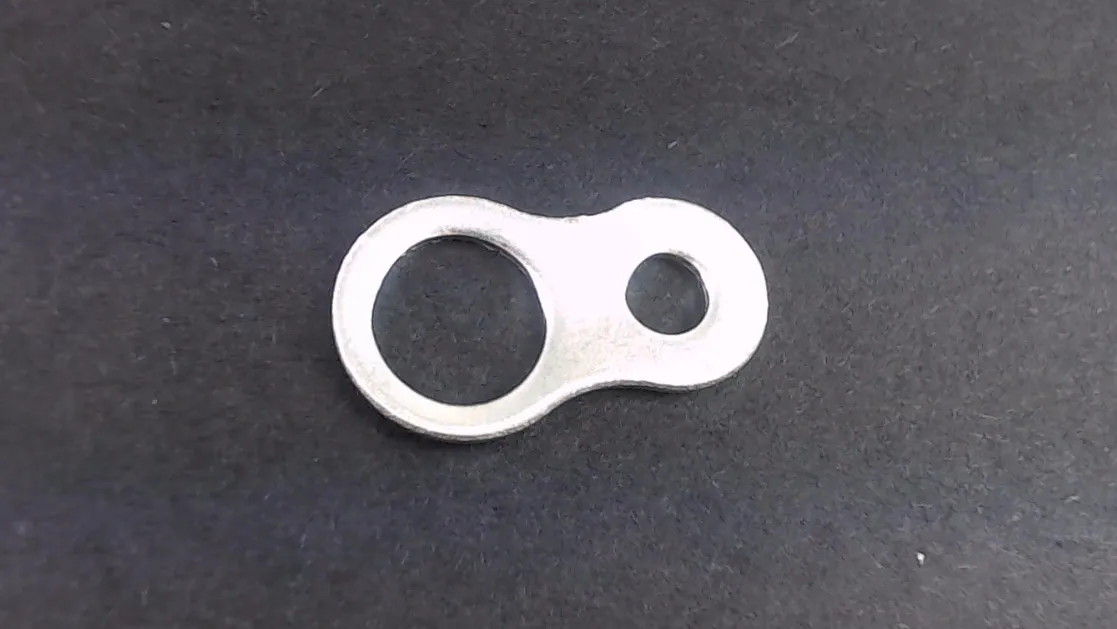

DeWalt 393071-00 Spare Part - PLATE
Genuine DeWalt retaining plate — part number 393071-00 — a stamped metal plate that secures the spindle/gear/bearing assembly on DeWalt mitre and sliding compound saws. It’s the direct replacement for the small retaining/retaining plate found at the arbor/spindle area, so swap it in when the original is bent, cracked, or missing to restore proper alignment and secure the internal bearings.
Common fit examples include DeWalt mitre saw models such as DW718, DW716, DW717, DW706, DW708, D27105 and compatible DWS/DHS series saws — check your saw’s type number against its parts diagram to confirm this plate is the correct item for your tool.
Simple to install when replacing a damaged plate: remove the blade/arbor cover as shown in the parts diagram, replace the plate in the spindle assembly, and reassemble per the manual. If you’re unsure which type number your saw uses, DeWalt’s parts/manual lookup will show the exploded diagram so you can match 393071-00 to the correct position before you fit it.
Compatible models this part will fit:
- DeWalt D27105 - D27105 Type 1
- DeWalt D27105 + V - D27105 + V Type 3
- DeWalt D27107 - D27107 Type 1
- DeWalt D27107 - V - D27107 - V Type 3
- DeWalt D27112 - D27112 Type 1
- DeWalt DW706 - DW706 Type 1
- DeWalt DW706E - DW706E Type 1
- DeWalt DW708 - DW708 Type 1
- DeWalt DW716 - DW716 Type 1
- DeWalt DW716E - DW716E Type 1
- DeWalt DW716EXPS - DW716EXPS Type 1
- DeWalt DW717 - DW717 Type 1
- DeWalt DW717XPS - DW717XPS Type 1
- DeWalt DW718 - DW718 Type 1
- DeWalt DW718XPS - DW718XPS Type 2
- DeWalt DWS780 - DWS780
- DeWalt D27113 - D27113 Type 1
- DeWalt D27107XPS - D27107XPS Type 1
- DeWalt DHS790N MITER SAW STAND - DHS790N Type 21
- DeWalt DCS781N - DCS781N Type 20
- DeWalt DWS780EXB - DWS780EXB Type 1
- DeWalt DCS781B - DCS781B Type 20
- DeWalt DCS781X1 - DCS781X1 Type 20
- DeWalt DWS782 - DWS782 Type 20
- DeWalt DHS790AB - DHS790AB Type 22
- DeWalt DHS716T2 - DHS716T2 Type 20
- DeWalt DHS790T2 - DHS790T2 Type 20
- DeWalt DHS790AT2 - DHS790AT2 Type 22
- DeWalt DW716XPS - DW716XPS Type 20
- DeWalt DWS709 - DWS709 Type 20
Showing first 30 compatible models. Contact us for full compatibility info.
