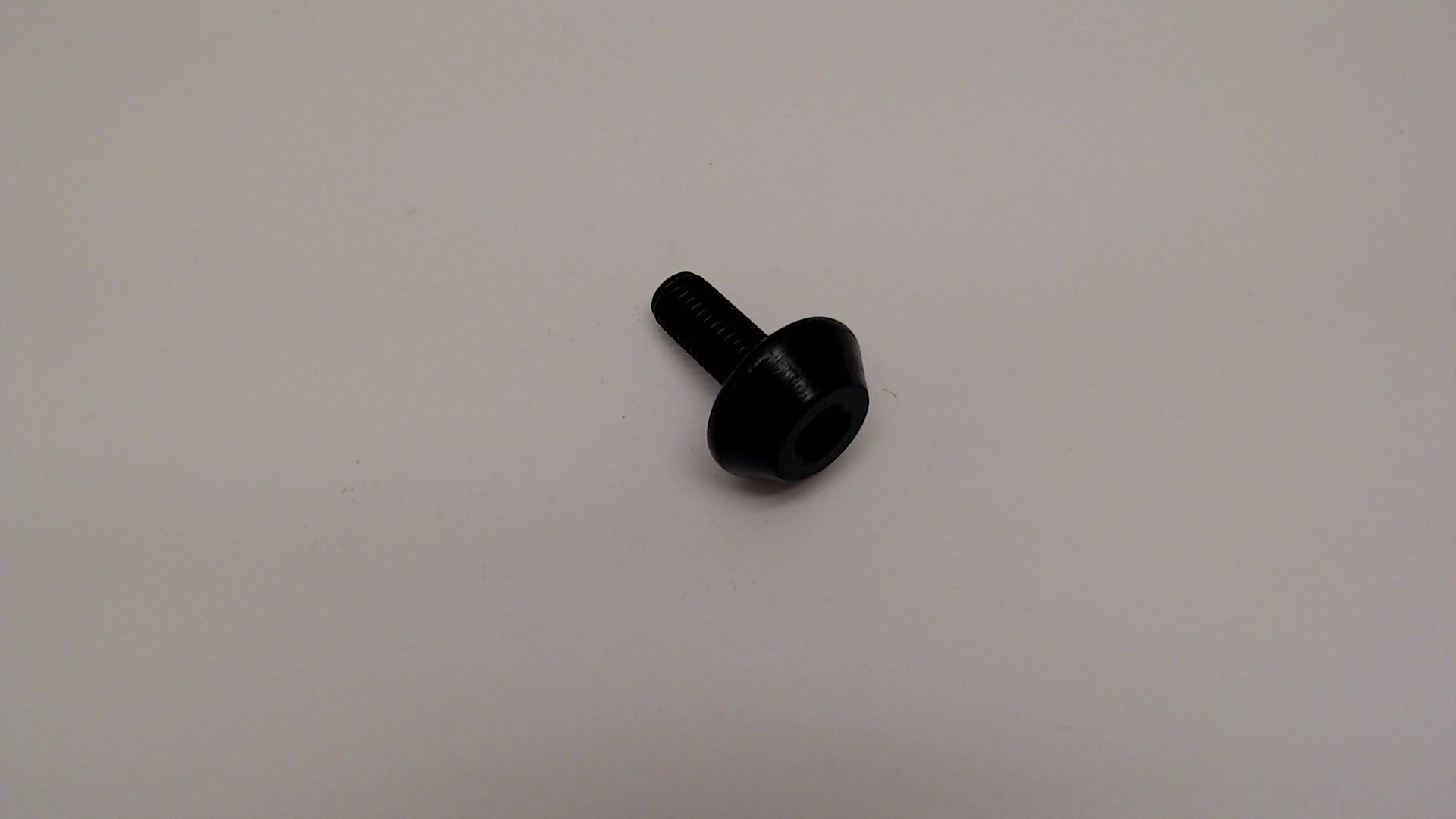

Bosch 1619P03482 Spare Part - Bolt

Genuine Bosch part 1619P03482 — flanged bolt / pin used on Bosch slide mitre saws. This small but critical fastener secures components in the sliding/hinge assembly and appears on Bosch exploded diagrams as the clamping/flanged bolt (often shown as position 69–74 depending on the model). Genuine Bosch replacement, sold as the single bolt/pin you need to restore correct alignment and safe movement of the slide.

Typical compatible models (example types listed on Bosch power tool parts diagrams):

- GCM 8 S / GCM 8 SJ series (e.g., type numbers 3601L16000, 3601L16200).

- GCM 800 S series (e.g., 3601L16100 and regional variants).

- GCM 10 MX variants ( Bosch type numbers such as 3601M29020 / 3601M29080 ).

- GTM 12 / GTM 12/3 table/slide mitre saws (example type 3601M15000).

What you’ll get: the single original Bosch flanged bolt (part no. 1619P03482 / sometimes formatted 1.619.P03.482). It’s a direct-fit factory part shown in Bosch power tool parts diagrams — fitment depends on your tool’s ten-digit type number, so match that to the model listings or the exploded diagram on your machine to confirm position and quantity before installing.

(If your model isn’t listed above, the part is commonly used across several Bosch slide/mitre saw types — consult the exploded parts diagram for your exact model number to verify the part position.)
