Bosch 1614220119 Spare Part - Field

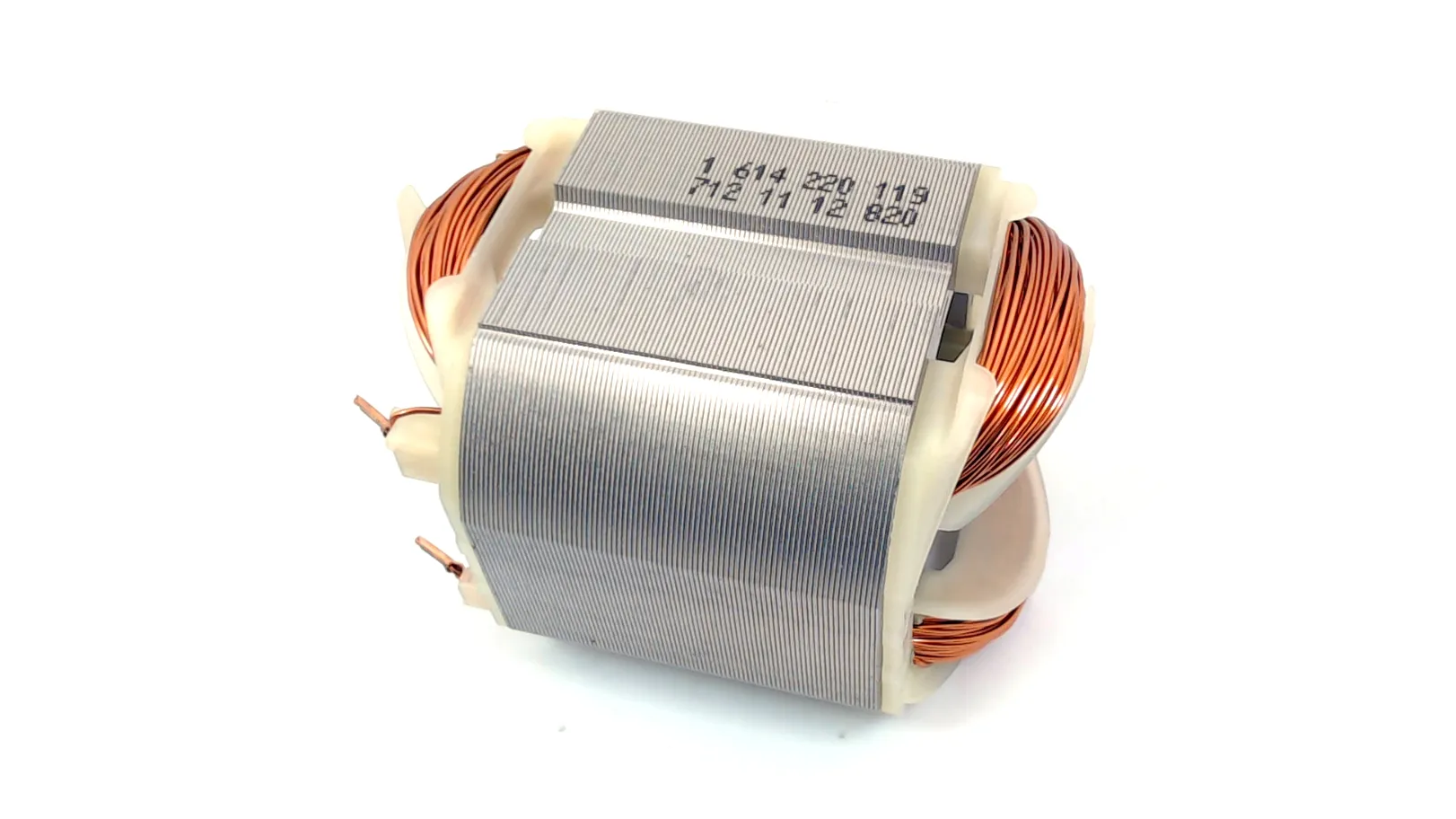

Genuine Bosch field (stator) 110V  part 1614220119 — direct replacement for the motor in compatible Bosch rotary hammers.

This part is supplied as the complete field coil assembly (listed as 1 614 220 119 in Bosch power tool parts diagrams) and drops into the original motor housing to restore correct winding alignment and brush contact.

Example fitment: Bosch GBH 4 DFE rotary hammer variants — including order numbers 0 611 236 741 and 0 611 236 765 (110 V GBH 4 DFE models) — so you can cross-check the model on your tool’s rating plate before ordering.

A straightforward swap for technicians or DIY repairers: it’s a single, genuine Bosch replacement field that gets the motor turning again and helps eliminate intermittent power or arcing when the original field has worn. This is one of the common power tool parts used to refresh an aging motor.
