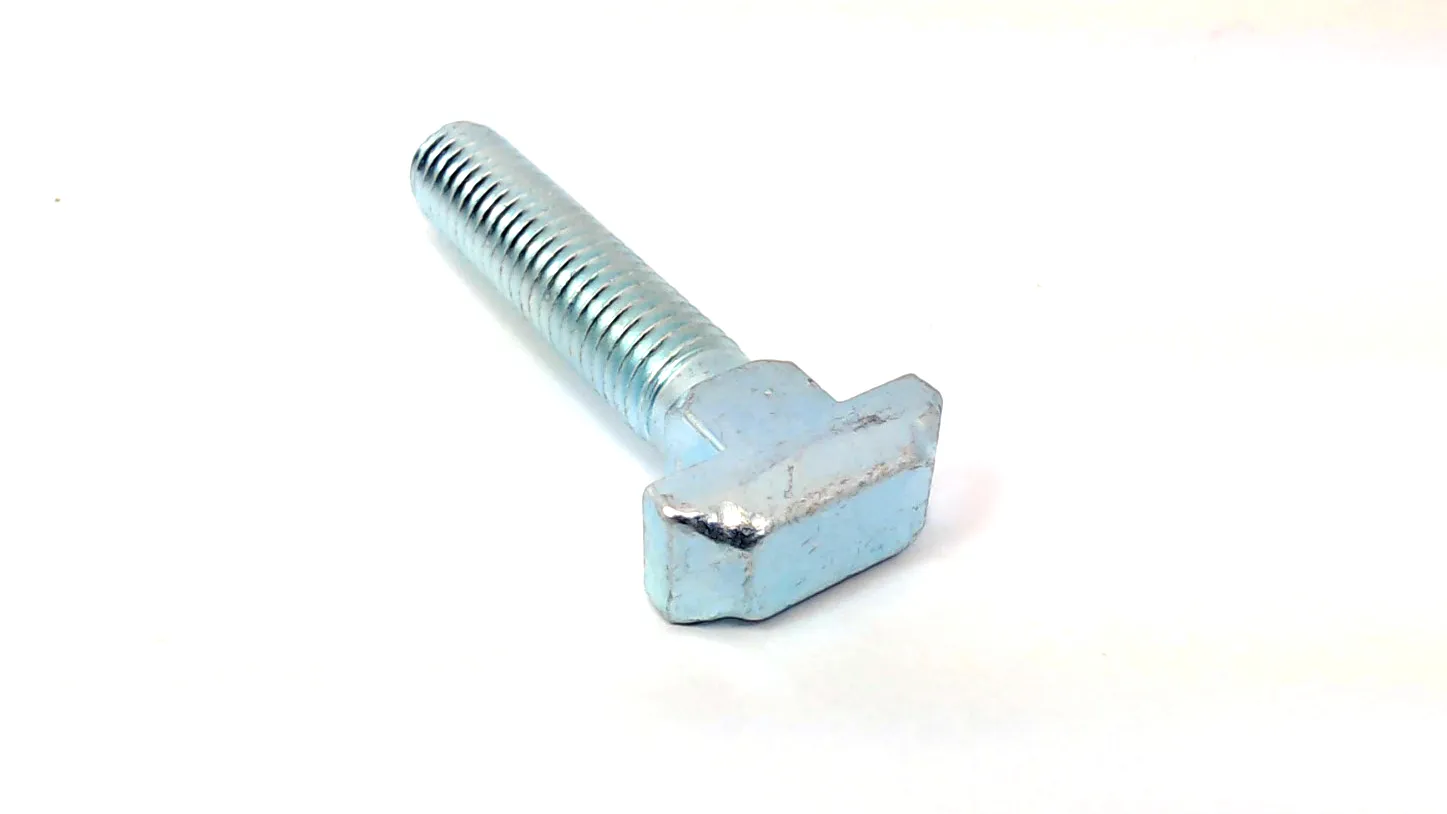

Bosch 1613490002 Spare Part - T-head Bolt
Genuine Bosch T-head bolt — part no. 1613490002. A T‑head (T‑bolt (M8x40 MM)) with M8 thread and an overall length of about 40 mm, designed to secure the auxiliary handle / support clamp on Bosch rotary hammers and drills.
This original Bosch replacement is supplied as a single T‑head bolt and fits into the handle/clamp assembly used on many Bosch rotary hammer models, providing a clean, direct swap for a missing, worn or stripped fastener. One of the Bosch power tool parts commonly listed for these assemblies, it restores the clamp’s grip and alignment without modification.
Example compatible models (representative): GBH 2‑26 / GBH 2‑24 DSR / GBH 2600 / GBH 2‑28 DFV, GSH 4 / GSH 388, GBH 24 VRE / GBH 24 VFR, and consumer/compact drills such as GSB 1800‑2 and models in the 1023VSR / 112xx series. Use your tool’s parts diagram or serial/model plate to confirm fit before installation.
Simple, direct replacement: an authentic Bosch part made to the original specifications so the auxiliary handle or support clamp functions as intended once reassembled.
Browse our full range of Bosch drill parts. Bosch hammer drill parts.
Compatible models this part will fit:
- Bosch Drill B6270 - 0 601 028 735
- Bosch Drill 1023 VSR - 0 601 023 734
- Bosch Drill 1028 VSR - 0 601 028 734
- Bosch Drill GBM 13 HRE - 0 601 049 608
- Bosch Drill 1029 VSR - 0 601 029 734
- Bosch Drill B 6280 - 0 601 023 735
- Bosch Percussion Drill GSB 1800-2 RE - 0 601 14A 603
- Bosch Percussion Drill 1199 VSR - 0 601 19B 439
- Bosch Percussion Drill GSB 20-2 RE - 0 601 184 606
- Bosch Percussion Drill GSB 18-2 - 0 601 141 003
- Bosch Percussion Drill GSB 1800-2 - 0 601 14A 003
- Bosch Percussion Drill GSB 20-2 - 0 601 184 003
- Bosch Percussion Drill GSB 650-2 - 0 601 19A 650
- Bosch Percussion Drill GSB 2200 - 0 601 15A 703
- Bosch Percussion Drill GSB 20-2 RCE - 0 601 192 703
- Bosch Percussion Drill GSB 650 RE - 0 601 19A 505
- Bosch Percussion Drill GSB 18-2 RE - 0 601 141 603
- Bosch Rotary Hammer DD 527 - 0 611 253 778
- Bosch Rotary Hammer 335/342 - 0 611 222 786
- Bosch Universal Rotary Hammer 325 A - 0 611 215 770
- Bosch Rotary Hammer 11228 VS - 0 611 228 639
- Bosch Rotary Hammer 11 234 VSR - 0 611 234 739
- Bosch Rotary Hammer GBH 2-24 DFR - 0 611 238 703
- Bosch Rotary Hammer GBH 2-26 DE - 0 611 253 603
- Bosch Rotary Hammer GAH 500 DSE - 0 611 221 503
- Bosch Rotary Hammer SPIT 322 - 0 611 226 870
- Bosch Rotary Hammer GBH 2-23 RE - 3 61150 400
- Bosch Rotary Hammer RH432VCQ - 3 611 C32 111
- Bosch Rotary Hammer GBH 2-22 E - 0 611 250 603
- Bosch Rotary Hammer GBH 2-26 DFR - 0 611 254 703
Showing first 30 compatible models. Contact us for full compatibility info.
