Bosch 1611015059 Spare Part - Sealing Frame

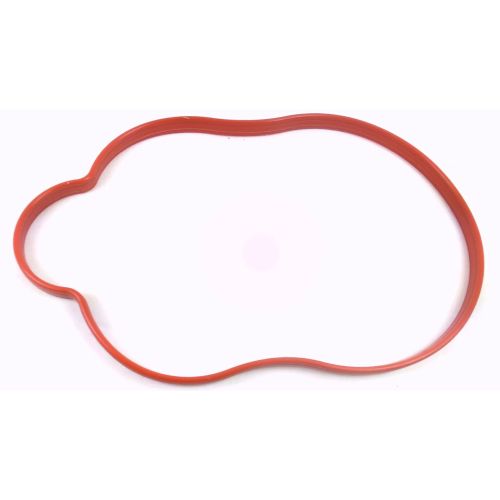

Genuine Bosch 1611015059 — Sealing Frame (for GSH 16‑28 / GSH 16‑30 demolition hammers)

Keep your breaker working like it should: this genuine Bosch sealing frame (Bosch part no. 1 611 015 059 / 1611015059) is the molded sealing ring/frame that sits in the housing to seal the internal strike/valve area and mating O‑rings, preventing dust and concrete slurry from entering the mechanism and accelerating wear.

Details you’ll want to know

- Part: Sealing frame (Bosch 1611015059 / 1 611 015 059). Shown as item 138 in the GSH exploded parts diagram.

- Function: forms the primary seal between housing components and the internal piston/valve area; used together with several O‑rings from the same parts set.

- Fitment examples: confirmed fit for Bosch GSH 16‑28 and GSH 16‑30 demolition hammers — including common type numbers such as 3611C35000, 3611C35010 (11335 / 120 V USA), 3611C35100 and many GSH 16‑30 variants. Use these model/type references to verify compatibility before installing.

Why this part matters

A worn or damaged sealing frame allows dust and debris into bearings, pistons and valve ports; replacing the sealing frame restores the intended sealing geometry and helps stop premature internal failures — an inexpensive part that protects more costly internal components.

What’s included / installation tip

Sold as the single sealing frame (Bosch 1611015059). When you replace it, inspect the adjacent O‑rings (parts called out near item 138 in the diagram) and replace any that are flattened or nicked to ensure a reliable seal.

(Part and model references taken from Bosch power tool parts diagrams and the GSH 16‑28 / GSH 16‑30 parts lists.)
