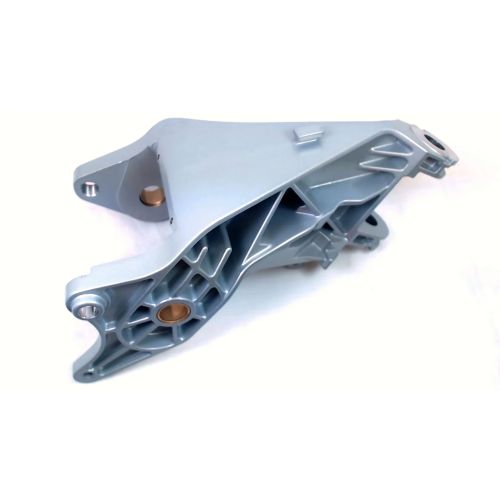

Bosch 1609B01717 Spare Part - Yoke

Genuine Bosch replacement yoke — part number 1609B01717. Heavy-duty metal yoke (listed as "Yoke" in Bosch power tool parts diagrams) that installs in the saw head assembly and interfaces with the pivot/arm components; supplied as a single Bosch part for direct replacement.

Fits Bosch GCM 12-series mitre saws — specifically shown in Bosch exploded parts for GCM 12 X (type 3601M211G0) and GCM 12 JL (type 3601M21100) as position 805 on the diagram. If your tool’s type number matches one of these, this is the correct Bosch yoke.

Practical details: Bosch part ref 1609B01717 is sold as the original Bosch yoke and is listed with an approximate shipping weight of about 0.81 kg (useful for packing/handling). Check the exploded view (position 805) to confirm the same mounting points and adjacent parts before installing.

Supplied as the authentic Bosch component, ready to drop into the factory locations on compatible GCM 12 models — ideal for restoring correct fit and function in your saw’s head/pivot assembly without modifications.
