AGRIFAB 46761-AF Spare Part - Spring

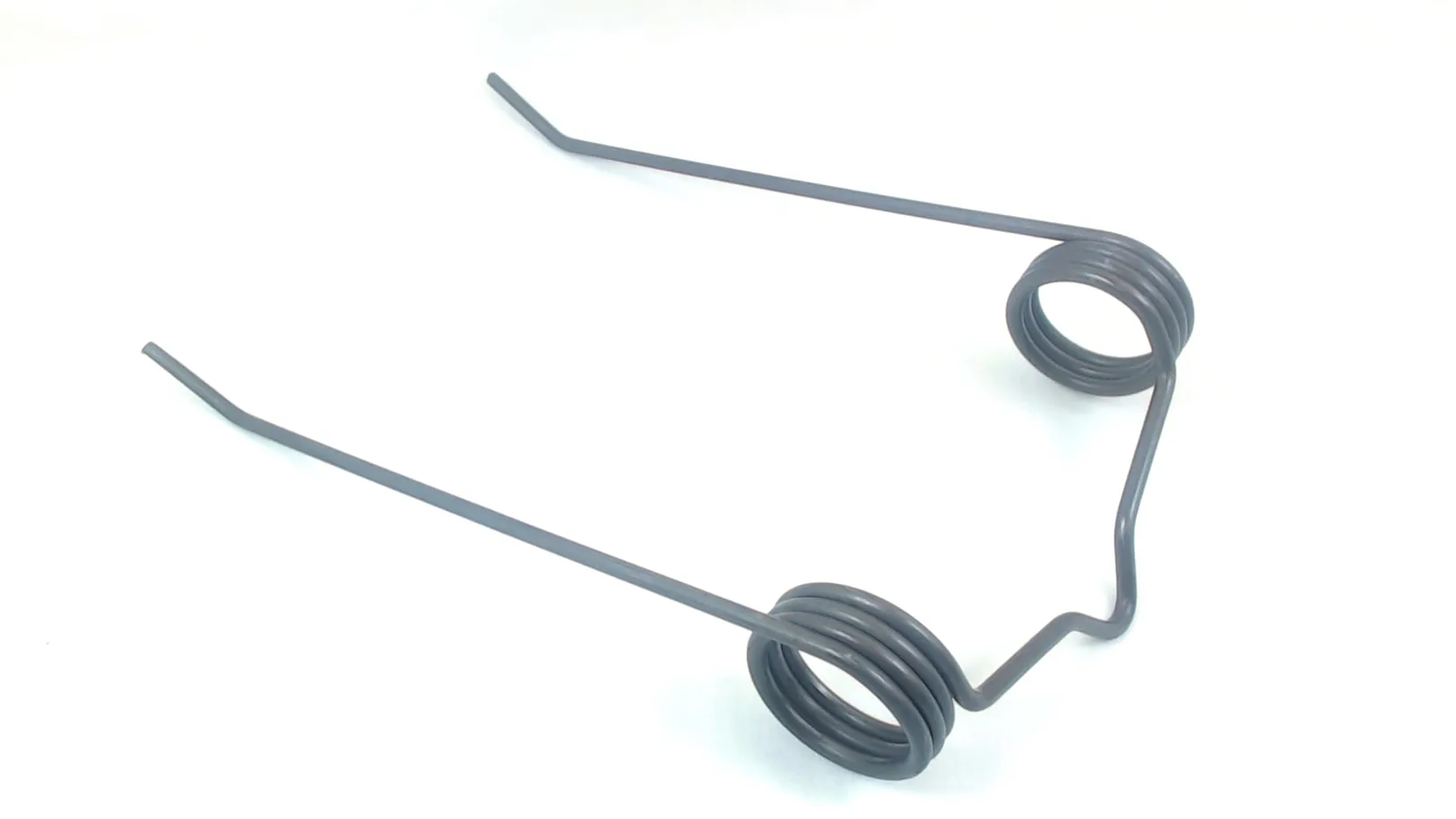

Genuine Agri-Fab part 46761 — a replacement spring tine for dethatcher attachments — restores the hooked spring action that lifts dead grass and roots when bolted to the alignment rod.
Constructed from spring steel with a wire diameter of 3.175 mm (1/8"), the tine measures roughly 180 mm long × 104 mm wide × 51 mm high (nominal), giving the flex and reach needed to dig into thatch without bending permanently.
This part is listed on Agri-Fab repair diagrams and fits a number of dethatcher/sweeper assemblies — example model references include 45-03431, 45-02351 and 45-0262, and it’s also used on several Craftsman attachment models such as 48624218, 48624219 and 48624311.
Keep a few genuine Agri-Fab parts on hand so a single damaged tine can be swapped quickly; installation is a simple hand-tool job (remove the retaining hardware, slide on the new tine, resecure).
Treat 46761 like any small power tool parts replacement: a low-effort swap that brings your dethatcher back to reliable performance.
Compatible models this part will fit:
- AGRIFAB DE-THATCHER 45-0235, 45-02351, 45-0294, 45-02951 - 48" TINE DE-THATCHER REPAIR PARTS MODEL NO. 45-02951 - FG697_0100
- AGRIFAB (2002) 45-02351 - REPAIR PARTS LIST FOR 32" DE-THATCHER MODEL #45-02351 - FG373_0010
- AGRIFAB (2003) 45-02351 - REPAIR PARTS LIST FOR 32" DE-THATCHER MODEL - FG393_0010
